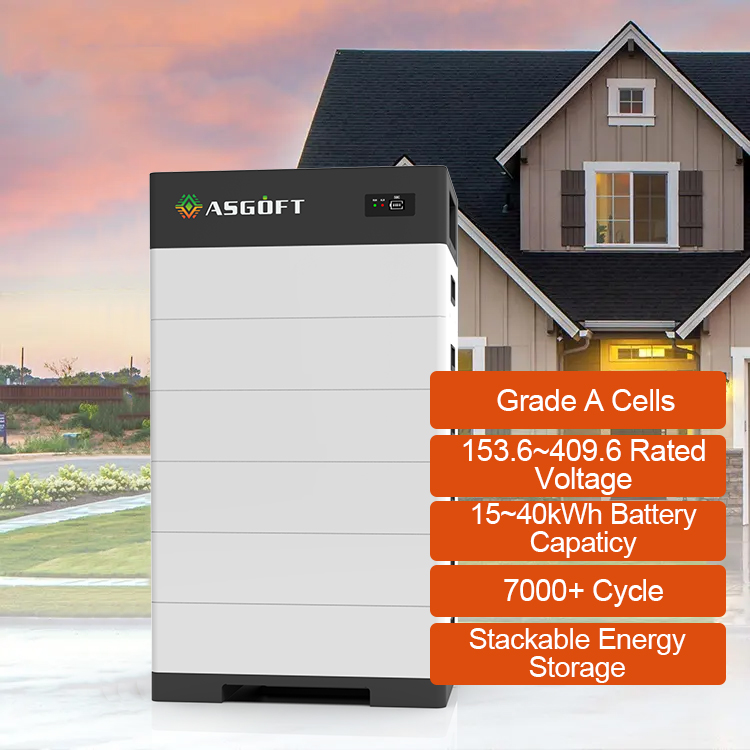

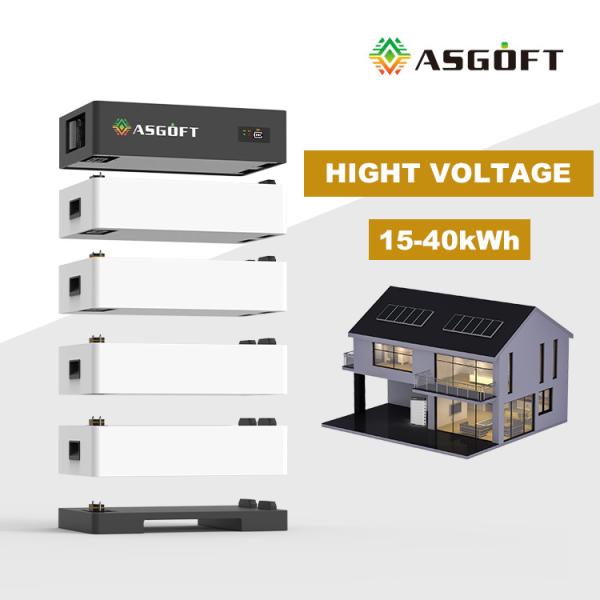

High Voltage 100Ah solar generator 15kwh-40kw Stackable energy
storage battery 100Ah home lithium ion batteries
Description:
Introducing our revolutionary high-voltage residential energy
storage system, designed to revolutionize the way you manage and
utilize energy in your home. With capacities ranging from 15kWh to
40kWh, this system empowers homeowners with a seamless and
efficient energy storage solution.
Experience the ease and convenience of installation with our
high-voltage system. Unlike traditional setups that require
extensive wiring connections, our system eliminates the need for
visible wires, providing a clean and aesthetically pleasing
installation. Say goodbye to the clutter and hello to a sleek and
modern energy storage solution.
Safety is our utmost priority. Our high-voltage system incorporates
advanced safety features to ensure the well-being of your home and
family. With enhanced protection mechanisms, you can enjoy peace of
mind knowing that your energy storage system is reliable and
secure.
Not only does our high-voltage system offer superior safety, but it
also boasts remarkable efficiency. By leveraging high-voltage
technology, our system achieves greater energy utilization,
resulting in optimized energy management and reduced energy losses.
This means you can make the most of every unit of energy stored and
maximize the efficiency of your home energy system.
Space optimization is another key advantage of our high-voltage
system. With its compact design, our system takes up considerably
less space compared to similar products on the market. This allows
for more flexibility in choosing the installation location, whether
it's in your garage, utility room, or any other suitable space in
your home.
Imagine a home where excess solar energy can be efficiently stored
and utilized when needed. Our high-voltage residential energy
storage system makes this a reality. Whether you want to reduce
your reliance on the grid, have a reliable backup power source
during outages, or optimize your energy consumption, our system
provides versatility and functionality to meet your needs.
Upgrade your home energy management with our cutting-edge
high-voltage residential energy storage system. It's time to take
control of your energy future and enjoy the benefits of efficient,
reliable, and sustainable energy storage right at your fingertips.
Features :
- Product Item: ASH-3072100
- Capacity: 100ah
- Voltage: 153.6V 204.8V 256V 307.2V 358.4V 409.6V
- Output power: 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh
- Material: EVE lithium iron phosphate battery
- Description: High Voltage Stackable Home energy storage battery
Specifications:
| Nominal Voltage | 153.6V 204.8V 256V 307.2V 358.4V 409.6V |
| Nominal capacity | 100AH |
| Nominal energy | 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh |
| Dimension(L*W*H, MM) | 610*386*650 mm 610*386*795 mm 610*386*940 mm 610*386*1085 mm 610*386*1230 mm 610*386*1375 mm |
| Battery Cell specifications: | EVE lithium iron phosphate battery |
| Max charging Current | 50A |
| Max Discharging Current | 60A |
| Internal resistance | ≤40 mΩ |
| Operating temperature(charge) | -22°C ~ 55°C |
| Storage temperature | -20°C ~ 25°C |
| Cell overcharge Protection | Overcharge detection voltage overcharge detection delay time Overcharge release voltage |
| Cell over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short Protection | Yes |
| Temperature Protection | Yes |
| Communication | CAN and RS485 |
| Cycle lfe | 8000 times(25°C@50%DOD,0.2C) |
| 6000 times(25°C@80%DOD,0.2C) |
| 4000 times(25°C@100%DOD,1C) |
| Life Span | 15-25 years Life span. Warranty: 5-10 years (Optional) |
Product Details :
1. Who are we? What we do?
We are based in Shenzhen, China, focus on ESS battery solution for
clients all over the world.
There are high-profile R&D , top management and sales teams.
ODM/OEM is available.
2. How do we guarantee the product warranty?
There is 5 to 10 years' warranty period.
3.How long is the lead time of sample order and production order?
About 1-2 weeks for sample order.
About 2-4 weeks for production order.
4. How long is the shipment?
About 2 weeks via air,3-7 weeks via sea, depending on the
destination.
5. How do we offer the after-sales service?
We're ready for 24/7 service.
