    3KWH 3 Phase Off Grid MPPT Solar Inverter With IEC Certification

    Ask Lasest Price
    Brand Name : ASGOFT
    Model Number : ASI -L4830U60-145
    Certification : IEC 62109,SAA,cETL,UL1741&CSA C22.2
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000
    Delivery Time : With 1~3 Weeks
    • Product Details
    • Company Profile

    3KWH 3 Phase Off Grid MPPT Solar Inverter With IEC Certification

    Built-in MPPT solar controller 3KWH Off Grid Solar Inverter with IEC / SAA / cETL / UL Certification


    Description:


    High Efficiency Power Supply - ASGOFT inverters has industrial design with a modern aesthetic look and built with advanced MMPT with up to 99.9% efficiency.
    Safe & Easy to use - 360 degress of security from hardware to software. Supporting for remote monitoring of operating parameters is its major feature, apart from this, it also has advantage of outputs high-quality pure sine wave AC power and reliable output for long periods at rated power. It's very easy to install and simple to use.
    Features:
    • Stable pure sine wave inverter
    • Built-in MPPT solar controller
    • Configurable input voltage range for home applications via LCD setting
    • Configurable AC/solar charger priority via LCD setting

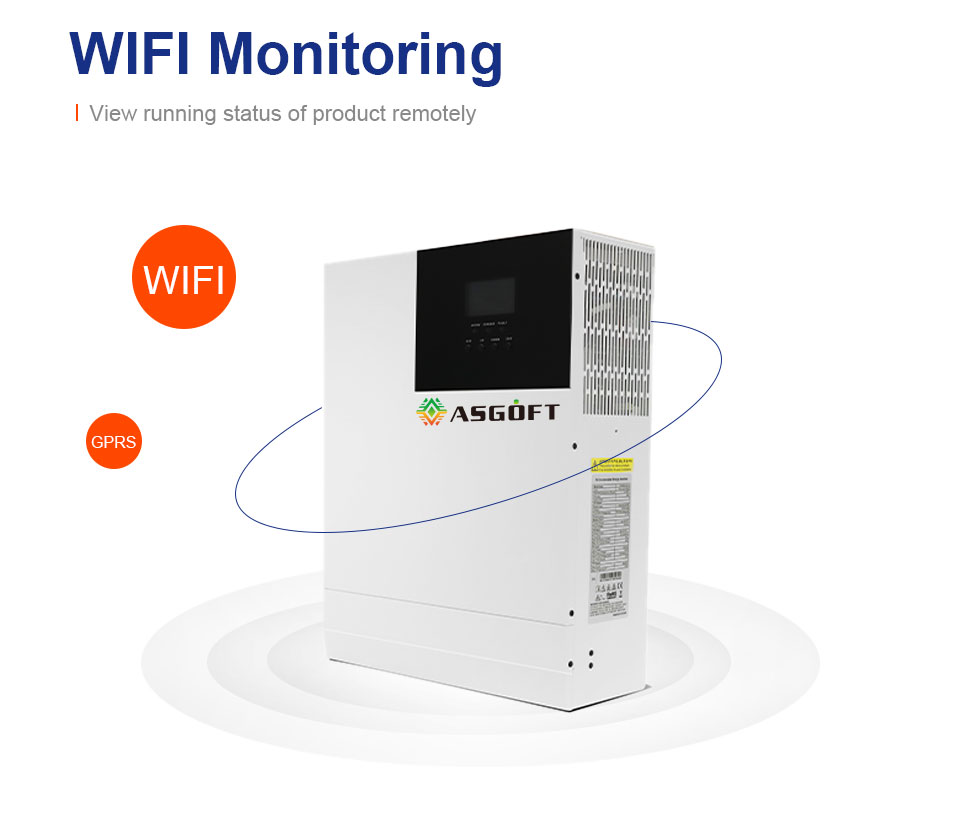

    • Smart WiFi remote monitoring(optional)
    Specifications:
    ModelsASI -L4830U60-145
    AC Mode
    Rated Input Power3000W
    Max.Peak Power6,000VA
    Rated Input Voltage120Vac(K/N/PE single phase)
    Load Capacity Of Motors2HP
    Frequency50Hz/ 60Hz
    Output Voltage WaveformPure Sine Wave
    Parallel CapacityNO
    BATTERY
    Battery TypeLi-ion/Lead-acid /User defined
    Rated Battery Voltage48Vdc
    Voltage Range40-60Vdc
    Max.MPPT Charge Current60A
    Max.Mains/Generator Charging Current40A
    Max.Hybrid Charging Current100A
    PV INPUT
    Num.of MPPT Trackers1
    Max.PV Array Power3400W
    Max.Input Current40A
    Max.Voltage Of Open Cuurent145Vdc
    MPPT Voltage Range60-115Vdc
    MAINS/GENERATOR INPUT
    Input Voltage Range90-140Vac
    Frequency Range50Hz/ 60Hz
    Bypass Overload Current40A
    EFFICIENCY
    MPPT Tracking Efficiency99.90%
    Max.Battery Inverter Efficiency92%
    Dimensions378*280*103(1.2*0.9*0.3ft)
    Weight6.2kg(13.6lb)
    Protection DegreeIP20,Indoor Only
    Operating Temperature Range-15°C-55°C (5°F-55°F)
    Noise<60dB

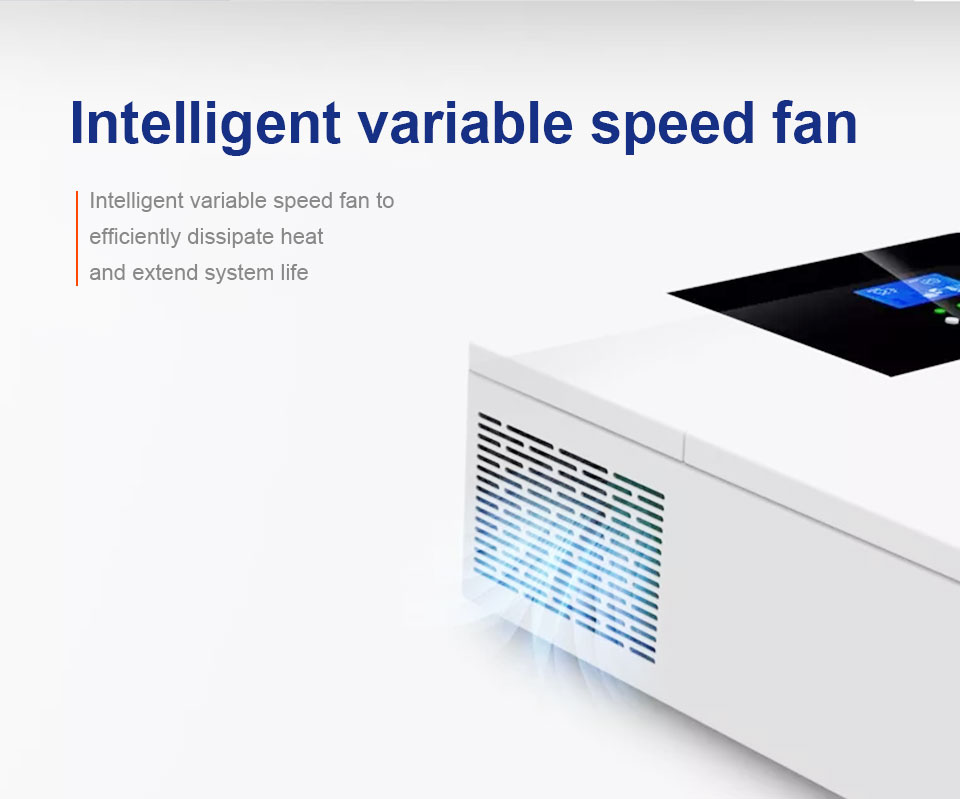

    Cooling MethodInternal Fan
    Warranty1 Year
    COMMUNICATION
    Communication InterfacesUSB/RS485/Dry node control
    External Modules(Optional)WiFi/GPRS
    CERTIFICATION
    SafetyIEC 62109,SAA,cETL,UL1741&CSA C22.2
    EMCEN61000,FCC Part15 ClassB
    RoHSYes

    Product Details :



    FAQ
    1. Who are we? What we do?
    We are based in Shenzhen, China, focus on ESS battery solution for clients all over the world.
    There are high-profile R&D , top management and sales teams.
    ODM/OEM is available.
    2. How do we guarantee the product warranty?
    There is 5 to 10 years' warranty period.
    3.How long is the lead time of sample order and production order?
    About 1-2 weeks for sample order.
    About 2-4 weeks for production order.
    4. How long is the shipment?
    About 2 weeks via air,3-7 weeks via sea, depending on the destination.
    5. How do we offer the after-sales service?
    We're ready for 24/7 service.
