Brand Name : | ASGOFT |
Model Number : | BESS-ASM-6000WH-3000W |
Certification : | CE/ROHS/MSDS/UN38.3/ IEC |
Price : | USD 970 /pcs |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 50000 pcs/ month |
Delivery Time : | 5-8 days |

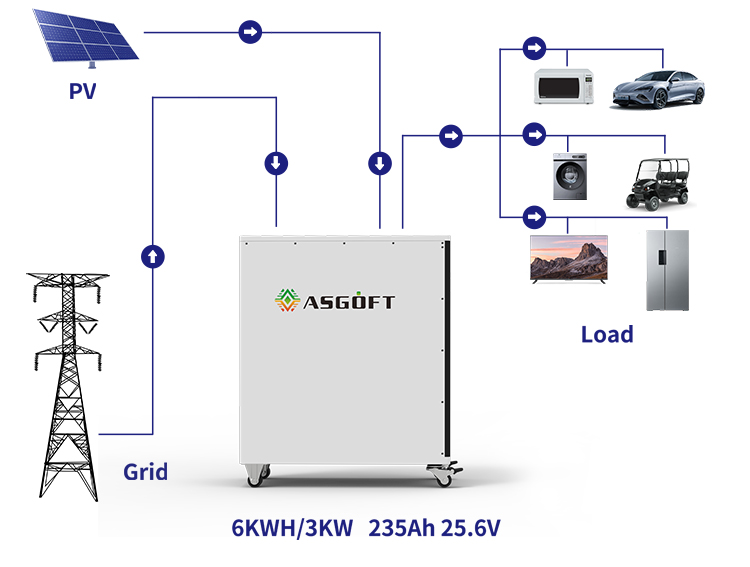

6KWH Lifepo4 off Grid Hybrid Inverter 3kw Solar Energy Storage System
Output Mobile Generation Power Station

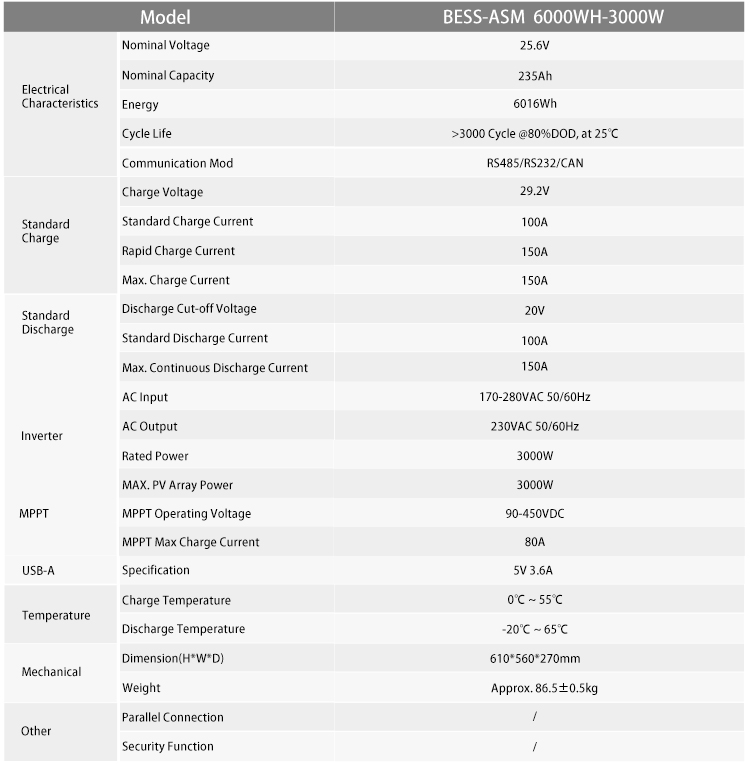

Product Specifications | ||
Model | BESS-ASM-6000WH-3000W | |
Battery Pack Parameters | Nominal voltage | 25.6V |
Nominal capacity | 235Ah | |
Rated Energy | 6016Wh | |
Charge cut off voltage | 29.2V (cut-off current 5A) | |
Standard charging current | 100A | |
Maximum charging current | 150A | |
Discharge cut-off voltage | 20V | |
Standard discharge current | 100A | |
Maximum charging current | 150A | |
Cycle life | >3000 Cycle @80%DOD, at 25°C | |
Battery Type | Lithium iron phosphate | |
Operating temperature | Charge:0~55℃ | |
Discharge:-20~65℃ | ||
Inverter parameters | Rated power | 3200VA/3000W |
Input voltage | 170-280VAC | |
Input frequency | 50Hz/60Hz | |
The output voltage | 230VAC | |
Output frequency | 50Hz/60Hz | |
Efficiency | 93% | |
Output waveform | Pure sine wave | |
PV parameters | Rated power | 3000W |
Open circuit voltage | 90V-450VDC | |
Maximum charging current | 80A | |
Efficiency | 98% | |
Size | 670*560*270mm | |
Weight | 86.3±0.5KG | |
Cool down | Air cooling | |
Shell material | SPCC cold rolled steel plate |
![]() |
