Solar battery cases system 15kwh 20kwh 25kw 30kw 35kw 40kw
stackable solar generator 100Ah lithium ion batteries stackable
Description:
Introducing the stackable high-voltage residential energy storage
system. With a capacity ranging from 15kWh to 40kWh, this system
offers easy installation, eliminating the need for visible wiring
connections and ensuring enhanced safety. Its compact design
occupies approximately 20% less volume compared to similar products
in the market. Leveraging high voltage, this system delivers higher
efficiency compared to low-voltage alternatives. It finds wide
applications in residential energy storage systems.
Expand your home energy possibilities with our high-voltage
residential energy storage solution. Designed for seamless
integration into your living space, this stackable system empowers
you to unlock the full potential of energy management. With
capacities ranging from 15kWh to 40kWh, it provides ample storage
to meet your household's energy needs.
Installation is a breeze, as the system eliminates the hassle of
visible wire connections, ensuring a clean and clutter-free
environment. The advanced high-voltage technology not only improves
efficiency but also maximizes energy utilization, allowing you to
make the most of every watt.
Safety is our top priority. The system incorporates robust
safeguards to protect your home and loved ones. Its high-voltage
design minimizes energy losses during storage and discharge,
resulting in a highly efficient energy management solution.
Not only does this system offer exceptional performance, but it
also excels in space optimization. Its compact footprint takes up
approximately 20% less volume compared to similar products, giving
you more flexibility in choosing the installation location.

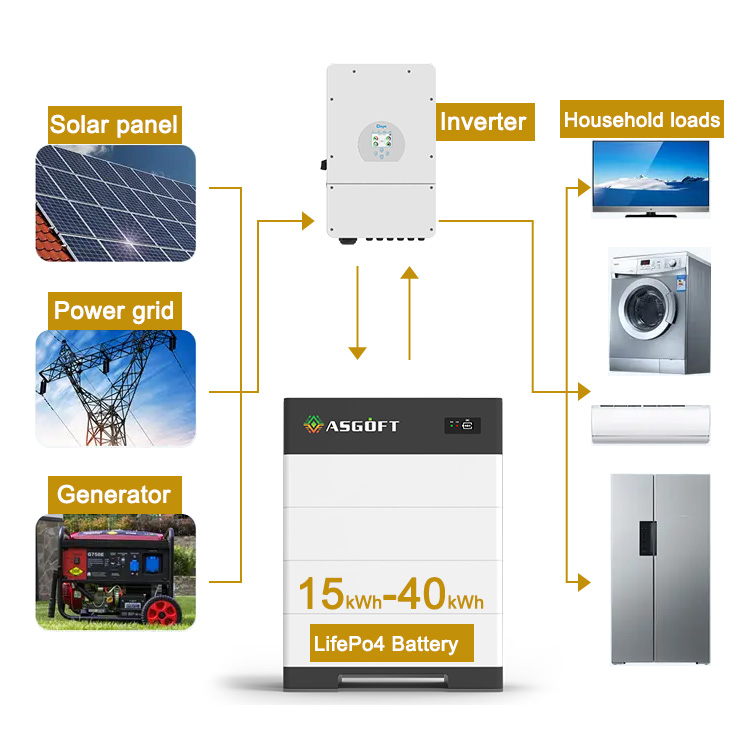

Experience the versatility of our high-voltage residential energy
storage system. Whether you want to store excess solar energy,
secure backup power during outages, or optimize your energy
consumption, this solution provides the reliability and efficiency
you need. Take control of your energy future with our cutting-edge
technology, designed specifically for residential applications.
Features :
- Product Item: ASH-3072100
- Capacity: 100ah
- Voltage: 153.6V 204.8V 256V 307.2V 358.4V 409.6V
- Output power: 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh
- Material: EVE lithium iron phosphate battery
- Description: High Voltage Stackable Home energy storage battery
Specifications:
| Nominal Voltage | 153.6V 204.8V 256V 307.2V 358.4V 409.6V |
| Nominal capacity | 100AH |
| Nominal energy | 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh |
| Dimension(L*W*H, MM) | 610*386*650 mm 610*386*795 mm 610*386*940 mm 610*386*1085 mm 610*386*1230 mm 610*386*1375 mm |
| Battery Cell specifications: | EVE lithium iron phosphate battery |
| Max charging Current | 50A |
| Max Discharging Current | 60A |
| Internal resistance | ≤40 mΩ |
| Operating temperature(charge) | -22°C ~ 55°C |
| Storage temperature | -20°C ~ 25°C |
| Cell overcharge Protection | Overcharge detection voltage overcharge detection delay time Overcharge release voltage |
| Cell over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short Protection | Yes |
| Temperature Protection | Yes |
| Communication | CAN and RS485 |
| Cycle lfe | 8000 times(25°C@50%DOD,0.2C) |
| 6000 times(25°C@80%DOD,0.2C) |
| 4000 times(25°C@100%DOD,1C) |
| Life Span | 15-25 years Life span. Warranty: 5-10 years (Optional) |
Product Details :
1. Who are we? What we do?
We are based in Shenzhen, China, focus on ESS battery solution for
clients all over the world.
There are high-profile R&D , top management and sales teams.
ODM/OEM is available.
2. How do we guarantee the product warranty?
There is 5 to 10 years' warranty period.
3.How long is the lead time of sample order and production order?
About 1-2 weeks for sample order.
About 2-4 weeks for production order.
4. How long is the shipment?
About 2 weeks via air,3-7 weeks via sea, depending on the
destination.
5. How do we offer the after-sales service?
We're ready for 24/7 service.
